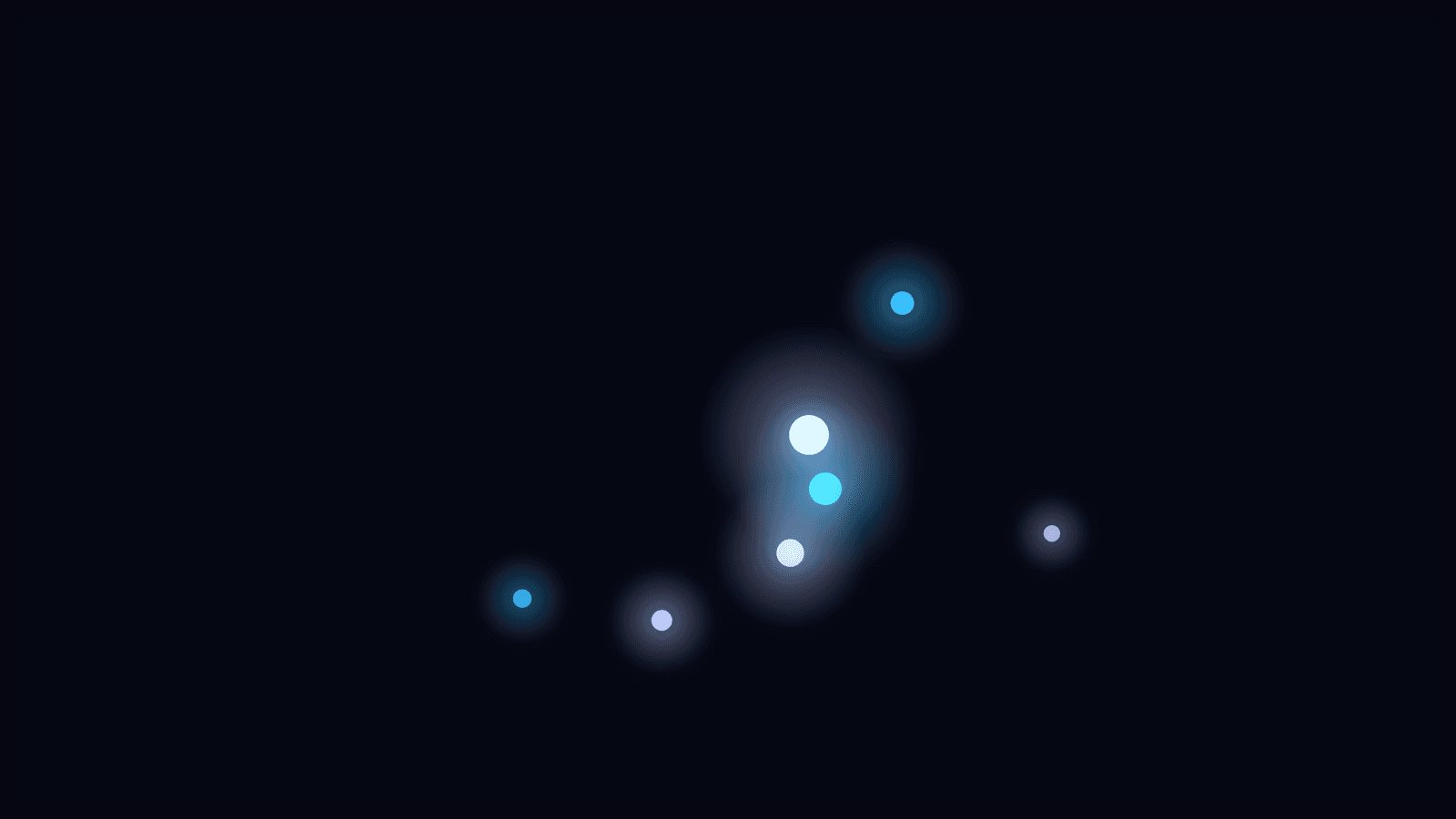

Harmonic Constellation

Spectral peaks become stars, and harmonically related peaks link into changing constellations.

Launch modes

Peak Stars

Only the spectrum's local maxima, drawn as a bare field of stars.

Classic Studio

Harmonic Web

Peaks whose frequencies sit near an integer ratio join into a graph.

Classic Studio

Transient Flare

Onsets throw brief spikes from the loudest partial; the field stays dim between them.

Classic Studio

Parallax Drift

Three depth layers of stars, each drifting at its own rate.

Classic Studio

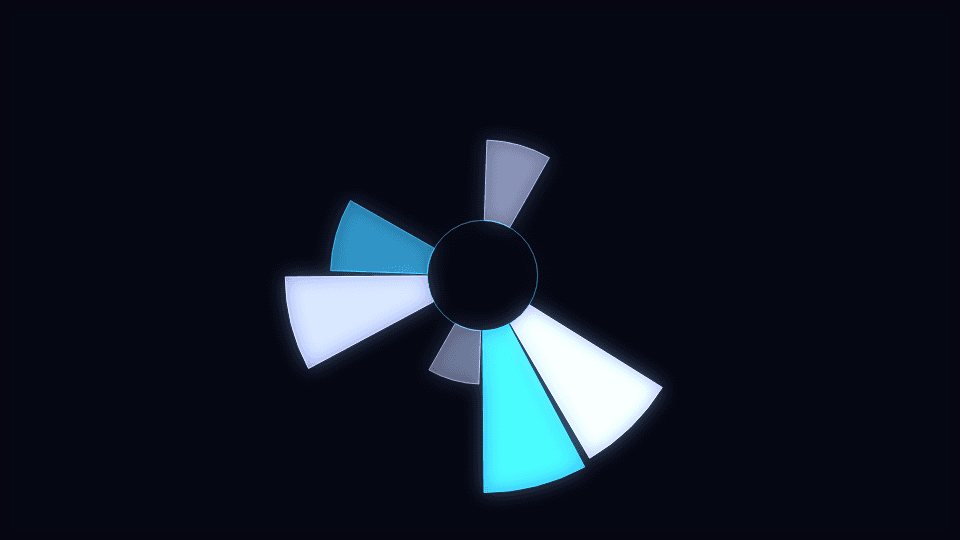

Chroma Halo

Peaks folded into twelve pitch classes arranged as a ring.

Classic Studio

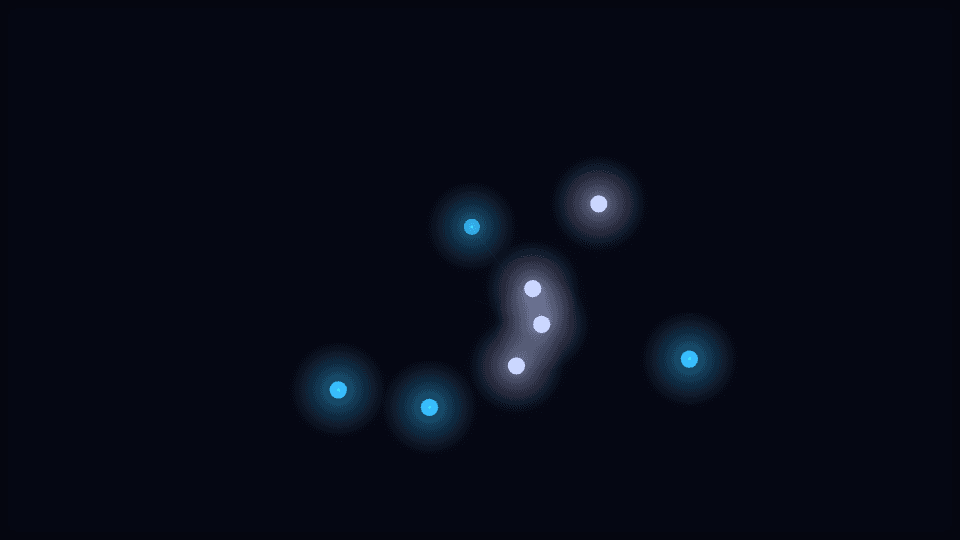

Comet Persistence

Each partial is tracked between frames and drags a fading trail.

Classic Studio

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#c7d2fe	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#38bdf8	Yes	No
BackgroundBackground used by the engine palette	Style	color	#03040c	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
Frame marginBreathing room kept clear at the frame edges. Audio-driven geometry is soft-limited to fit inside it; geometry scale deliberately is not	Transform	range	0.035	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeFraction of the frequency range the visual spans. The top of the FFT is near-silent air on most material, so at 1 the right-hand edge of every spectrum visual barely moves	Audio	range	0.86	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Star densityHow many spectral peaks are promoted to stars	Constellation	range	0.55	Yes	Yes
Harmonic toleranceHow near an integer a frequency ratio must be to draw a link	Constellation	range	0.12	Yes	Yes
Line persistenceHow long links, flares and comet trails survive	Constellation	range	0.45	Yes	Yes
Camera driftSlow rotation of the star field	Constellation	range	0.3	Yes	Yes
Flare gainSize and count of the spikes a transient throws	Constellation	range	0.7	Yes	Yes
Bloom capCeiling on each star's halo, so a dense mix cannot wash to white	Constellation	range	0.6	Yes	Yes
