Lattice

Mirrors, tilings, wireframes and trusses: hard-edged geometry that switches on the beat.

Launch modes

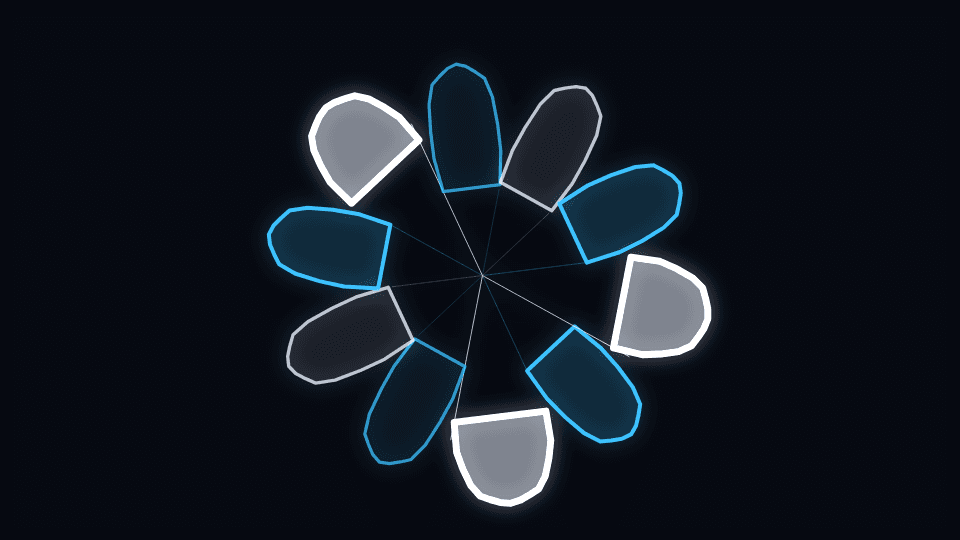

Kaleidoscope

A mirrored wedge repeats around the frame, its profile cut from the spectrum.

Classic Studio

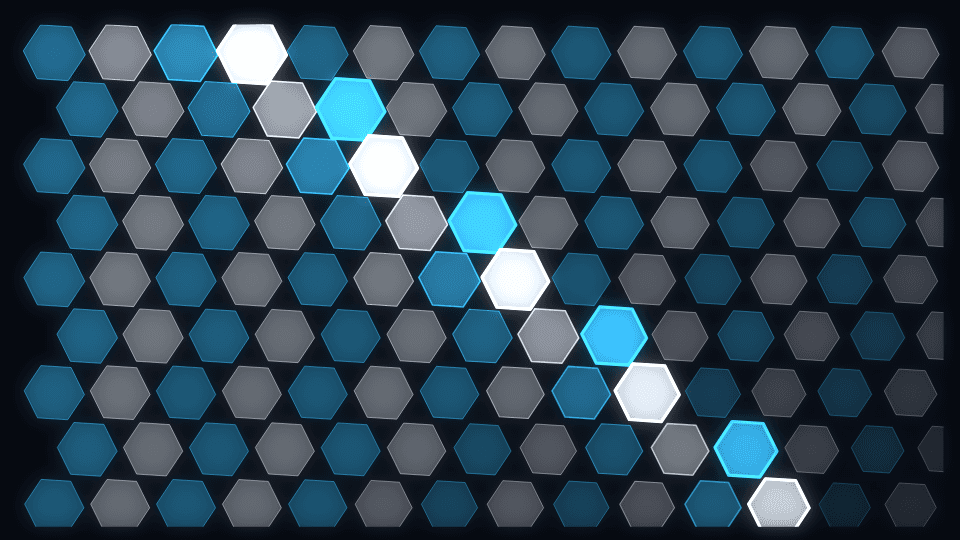

Tessellation

A still hex tiling that beats light in travelling stripes.

Classic Studio

Wire Polyhedron

A rotating wireframe solid whose vertices ride their own bands.

Classic Studio

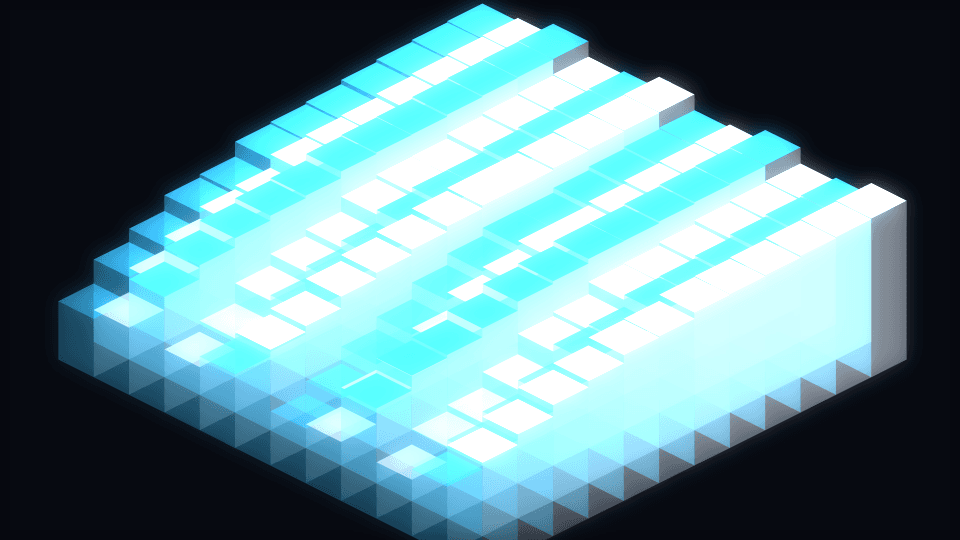

Isometric Grid

An isometric block field where every column is a frequency.

Classic Studio

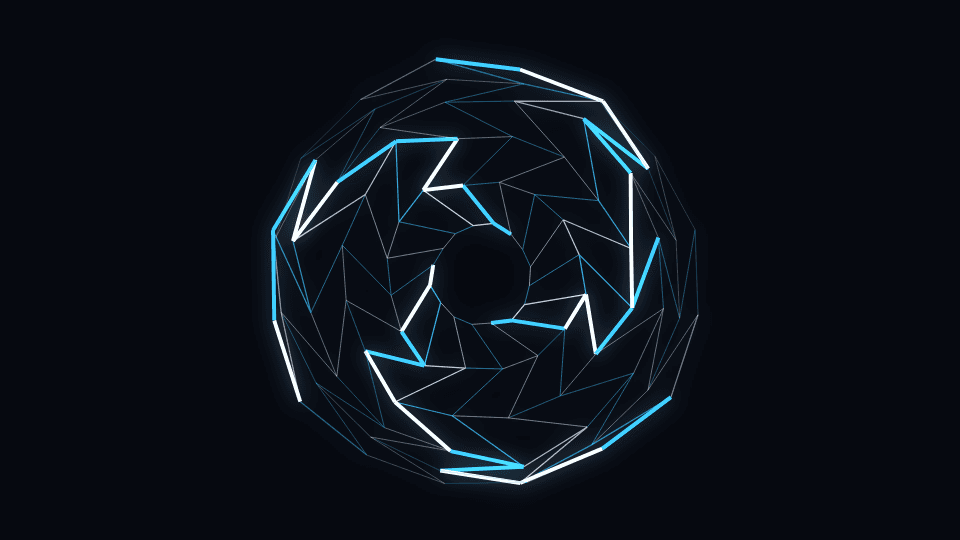

Truss Web

Node rings wired to their neighbours; struts carry current on the beat.

Classic Studio

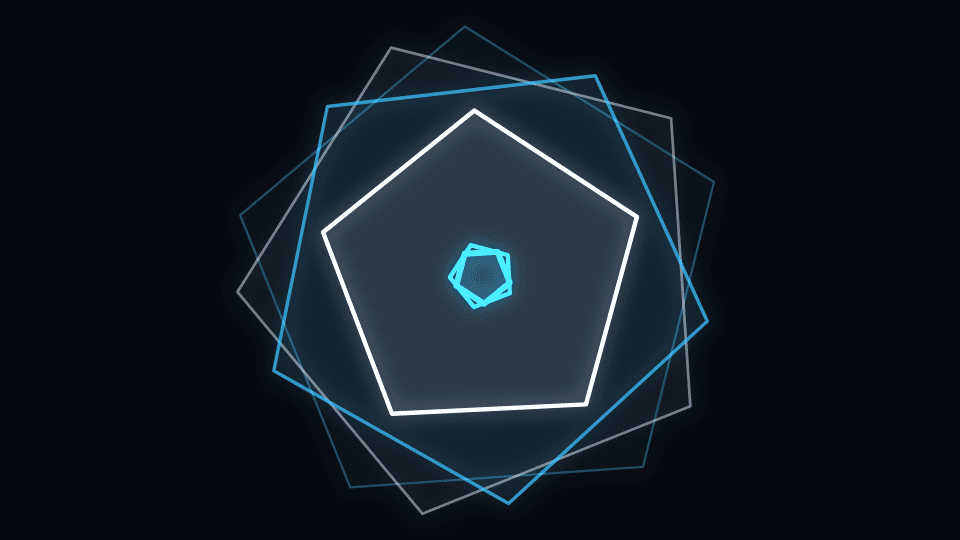

Prism Stack

One polygon is born per beat and travels outward carrying that hit.

Classic Studio

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#38bdf8	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#e2e8f0	Yes	No
BackgroundBackground used by the engine palette	Style	color	#04060b	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
Frame marginBreathing room kept clear at the frame edges. Audio-driven geometry is soft-limited to fit inside it; geometry scale deliberately is not	Transform	range	0.035	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeFraction of the frequency range the visual spans. The top of the FFT is near-silent air on most material, so at 1 the right-hand edge of every spectrum visual barely moves	Audio	range	0.86	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
GeometryGeometry	Geometry	select	circle	No	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
ThicknessThickness	Geometry	range	2	Yes	Yes
SymmetryRepeated geometry symmetry	Geometry	range	1	Yes	No
TwistTwist	Geometry	range	0	Yes	Yes
Noise deformationNoise deformation	Geometry	range	0	Yes	Yes
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
RotationSlow global rotation for radial/tunnel/bloom structures	Motion	range	0	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Polygon sidesEdges per tile, prism, and truss ring	Lattice	range	6	Yes	No
Grid densityTiles across the frame, or rings in the truss	Lattice	range	12	Yes	No
NodesWireframe vertex count	Lattice	range	64	Yes	No
Cell fillHow solid a lit cell reads against its outline	Lattice	range	0.28	Yes	Yes
JitterBeat-quantized irregularity in the lattice, so the grid breathes	Lattice	range	0.18	Yes	Yes
