Sketchbook

Hand-drawn visuals on paper: pencil strokes, ink and charcoal that sketch the music as it plays.

Launch modes

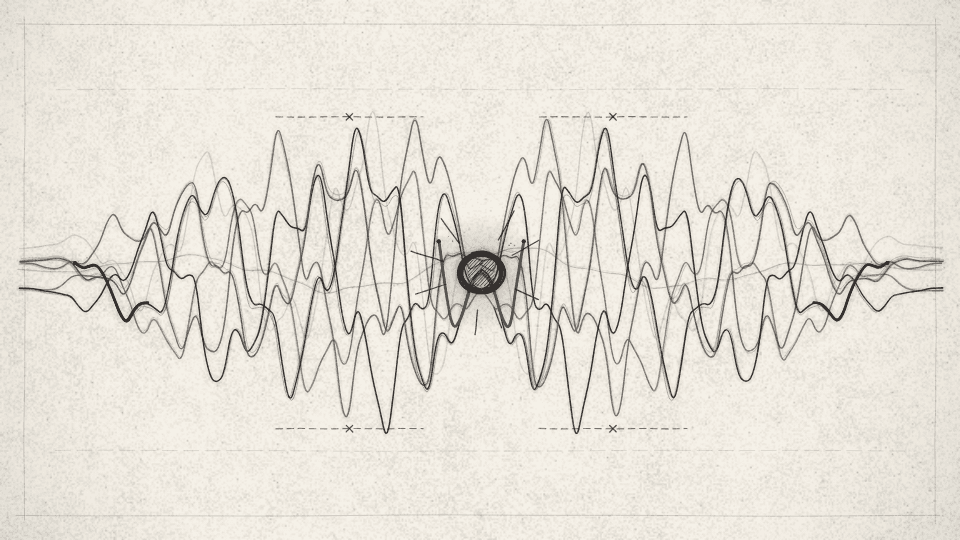

Pencil Lines

Each beat, a pencil draws the waveform out from a graphite knot to both edges of grainy paper.

Classic Studio

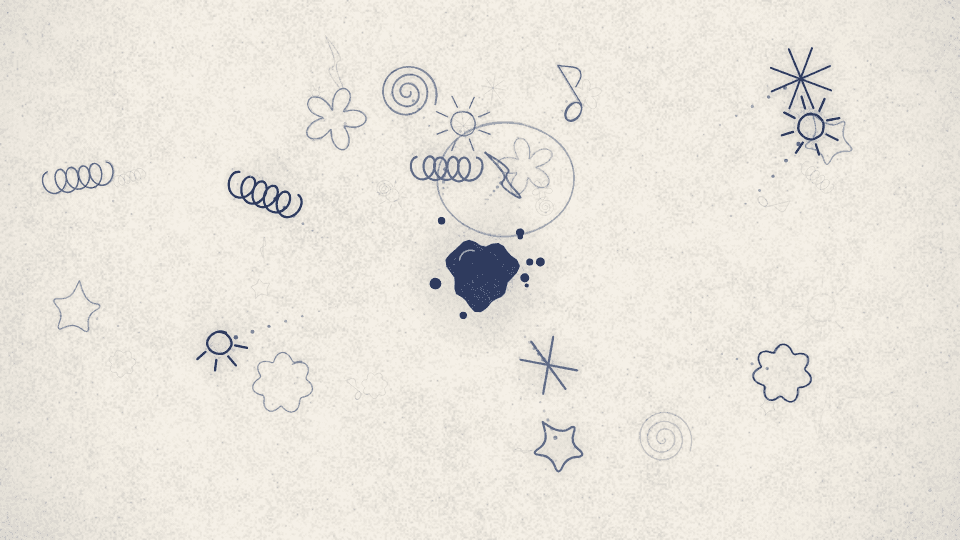

Ink Doodles

Doodles fly out of an ink blot on the beat, sprout stroke by stroke and dry from glossy to matt.

Classic Studio

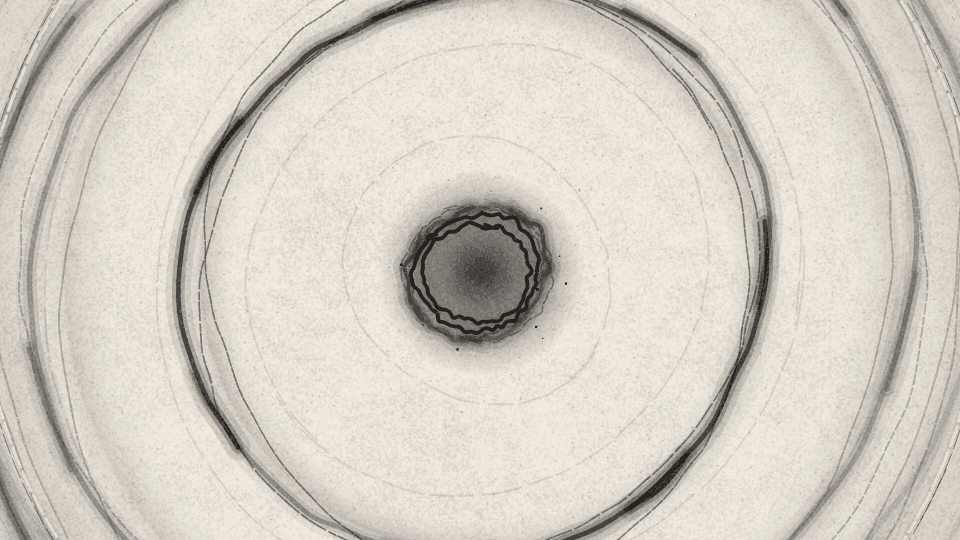

Charcoal Rings

Rough charcoal rings burst from a smudged core, thicken with the bass and smear as they spread.

Classic Studio

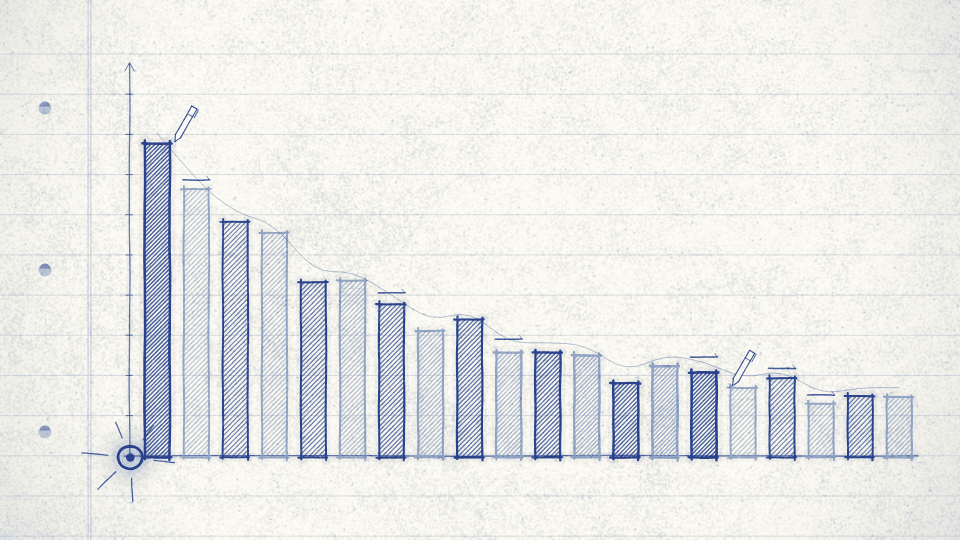

Notebook Grid

A ballpoint bar chart on ruled paper, redrawn bar by bar as a pen sweeps across on the beat.

Classic Studio

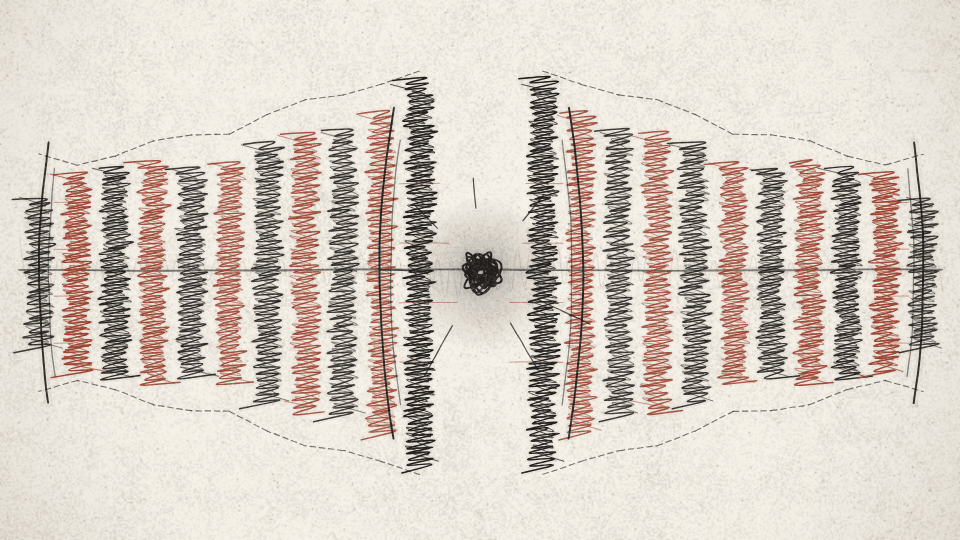

Scribble Bars

Mirrored bars coloured in with frantic graphite and red chalk scribbles, re-scribbled by each beat.

Classic Studio

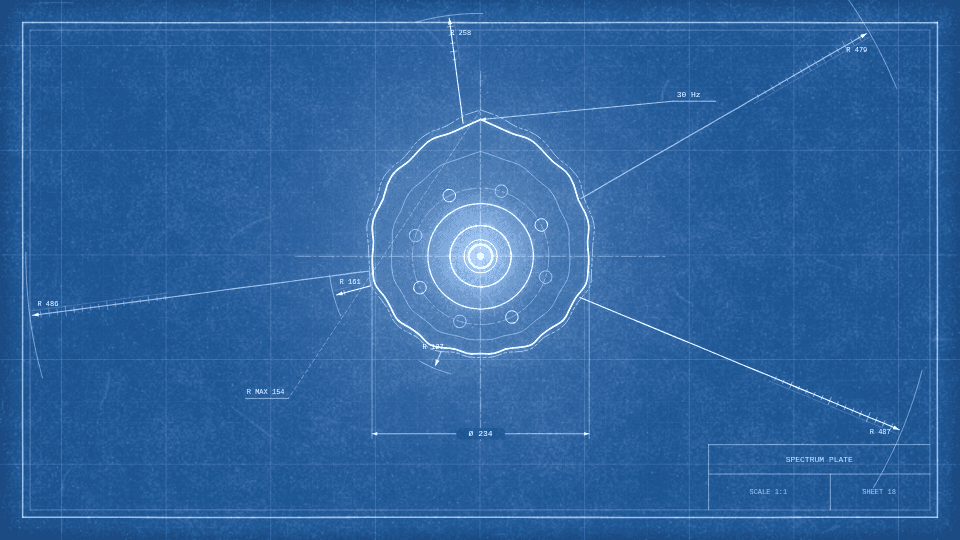

Blueprint

White drafting on blueprint blue: a part shaped by the spectrum, dimensioned live as it plays.

Classic Studio

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#1c1917	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#57534e	Yes	No
BackgroundBackground used by the engine palette	Style	color	#f5f0e6	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
Frame marginBreathing room kept clear at the frame edges. Audio-driven geometry is soft-limited to fit inside it; geometry scale deliberately is not	Transform	range	0.035	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeFraction of the frequency range the visual spans. The top of the FFT is near-silent air on most material, so at 1 the right-hand edge of every spectrum visual barely moves	Audio	range	0.86	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Frequency focusWhich part of the spectrum drives this visual; while no explicit audio source is set, the motion envelope follows this selection	Audio	select	full	No	No
Burst intensityGlow and trail swell on sharp hits; 0 keeps bursts off	Audio	range	0	Yes	No
Ambient bedProminence of the standing background layer behind the beat-born elements	Effects	range	1	Yes	No
Wake lengthHow far motion trails stretch behind beat-born travelers; 0 removes the wake	Effects	range	1	Yes	No
Pulse coreProminence of the source element the beat emanations fire from; 0 hides it	Effects	range	1	Yes	No
Peak memoryHow long peak markers hold before fading; 0 disables the memory layer	Effects	range	1	Yes	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
ThicknessThickness	Geometry	range	2	Yes	Yes
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Hand wobbleHow far every stroke wanders from a ruler line, like a hand-held pencil	Sketch	range	0.5	Yes	Yes
Line boilHow often lines are redrawn with a fresh wobble, like hand-drawn animation; 0 holds them steady	Sketch	range	0.5	Yes	Yes
Paper grainStrength of the paper tooth that breaks up the strokes	Sketch	range	0.6	Yes	Yes
Stroke densityExtra pencil passes, tighter hatching and denser scribbles	Sketch	range	0.5	Yes	Yes
