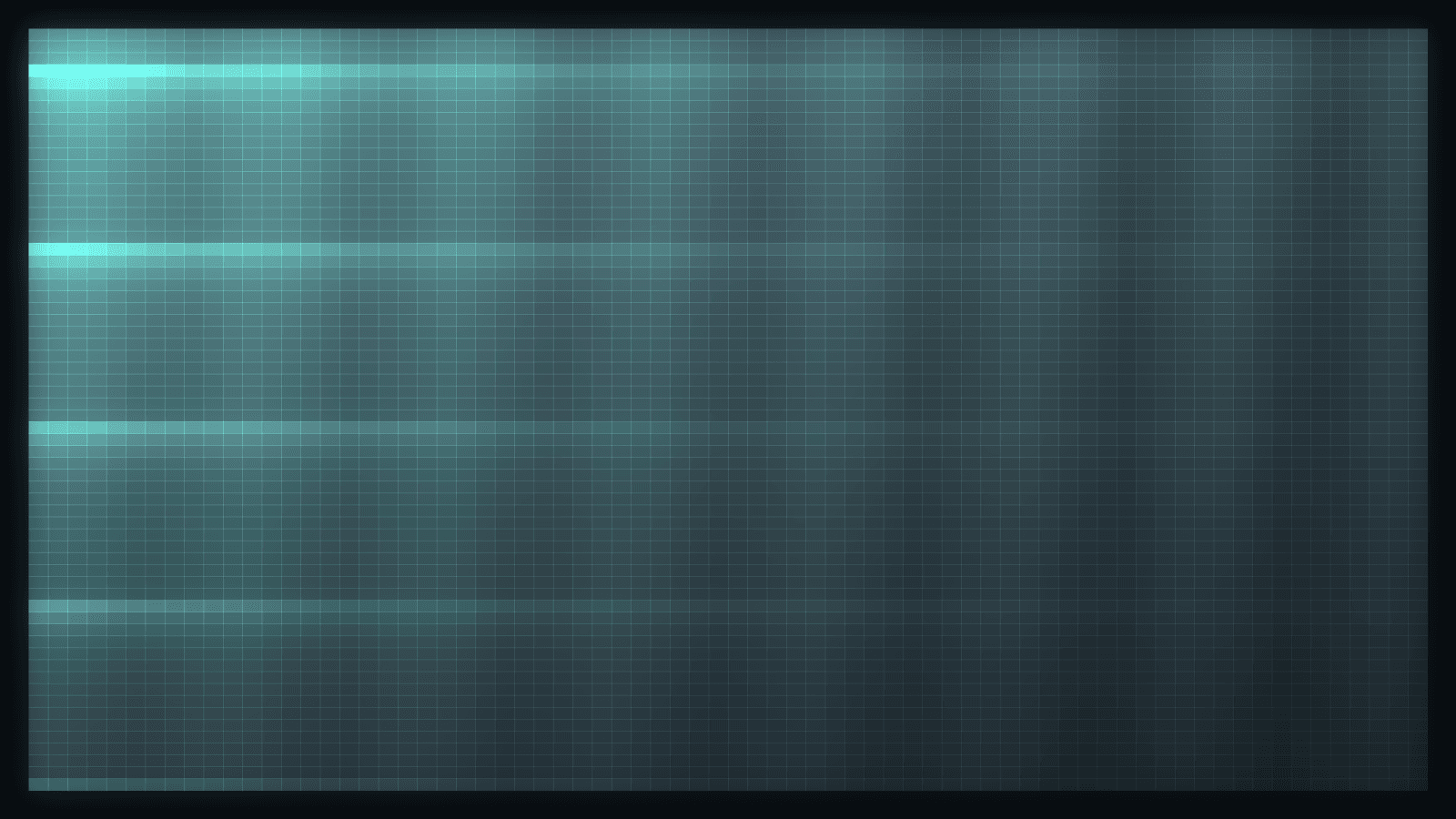

Spectral Topography

The spectrum's history as a contour map: frequency across, time down, rhythm visible as banding.

Launch modes

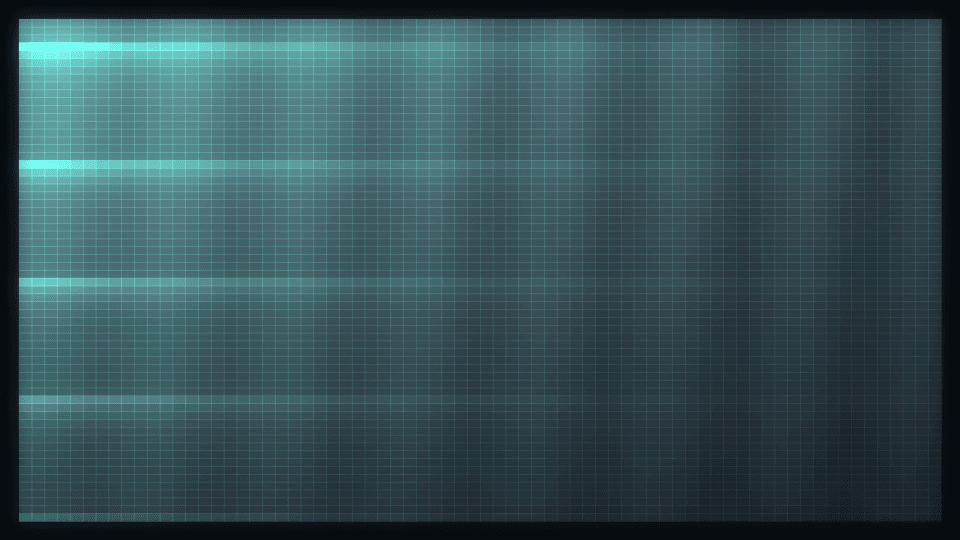

Heat Ribbon

Every past frame shaded by magnitude: the plot itself, no geometry.

Classic Studio

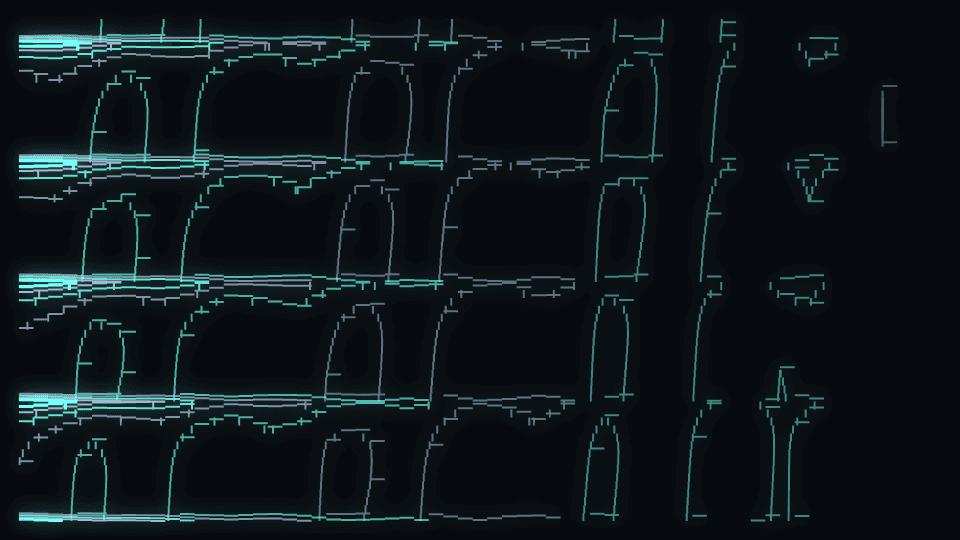

Contour Lines

Iso-level curves traced through the history, like a survey map.

Classic Studio

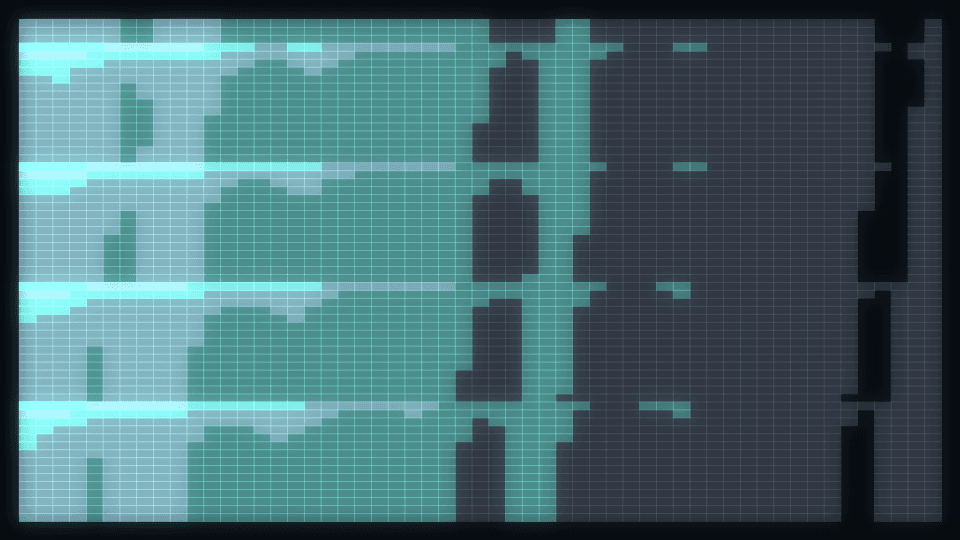

Iso Bands

The map as filled regions between levels rather than as lines.

Classic Studio

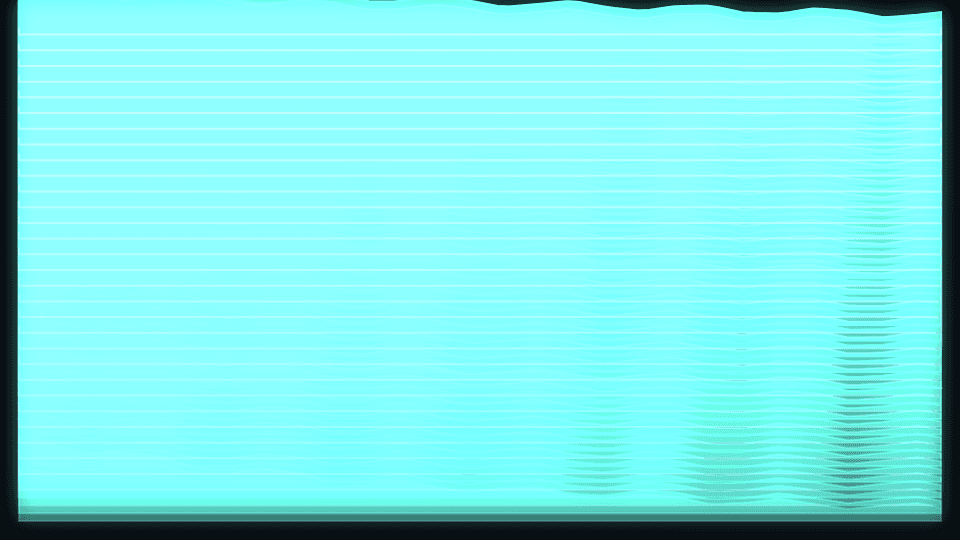

Ridge Plot

Each past frame as an offset line, drawn back to front so nearer ridges occlude.

Classic Studio

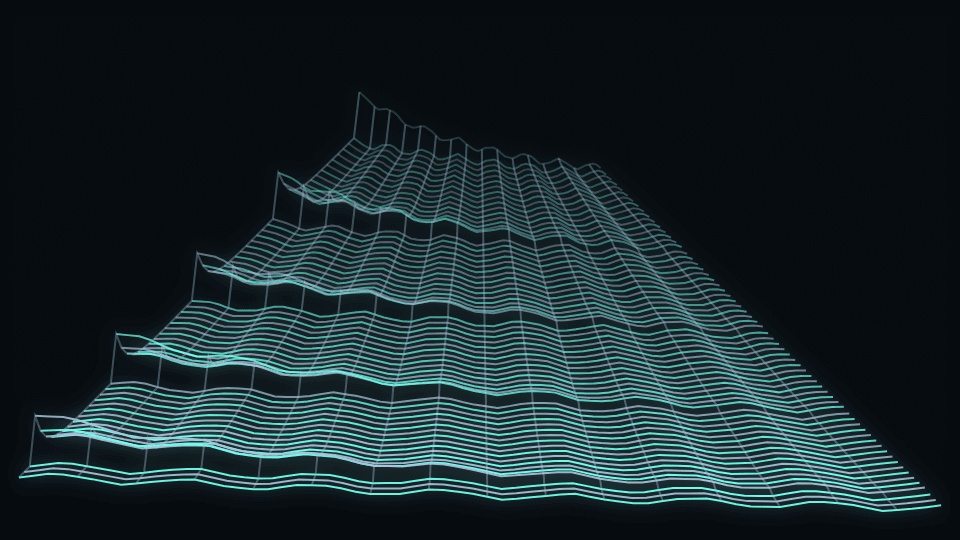

Wire Relief

The history as a projected wireframe under a fixed viewpoint.

Classic Studio

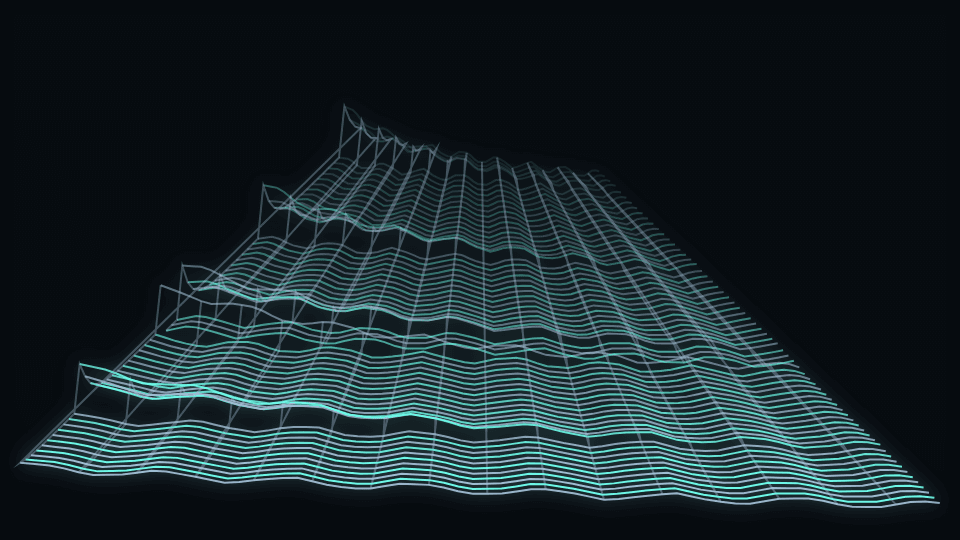

Flyover

The same surface with the camera travelling along the time axis.

Classic Studio

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#5eead4	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#94a3b8	Yes	No
BackgroundBackground used by the engine palette	Style	color	#04070a	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
Frame marginBreathing room kept clear at the frame edges. Audio-driven geometry is soft-limited to fit inside it; geometry scale deliberately is not	Transform	range	0.035	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeFraction of the frequency range the visual spans. The top of the FFT is near-silent air on most material, so at 1 the right-hand edge of every spectrum visual barely moves	Audio	range	0.86	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
ThicknessThickness	Geometry	range	2	Yes	Yes
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Band resolutionColumns across the frequency axis	Topography	range	64	Yes	No
Contour spacingGap between iso-levels on the map	Topography	range	0.12	Yes	Yes
Height scaleRelief of the projected surface	Topography	range	0.55	Yes	Yes
FogHow quickly the far end fades into the background	Topography	range	0.35	Yes	Yes
ViewpointHorizon height for the projected modes	Topography	range	0.45	Yes	Yes
