Spectrum

Frequency-domain lines, areas, ribbons, spectrograms, ridges, and meshes.

Launch modes

Line Spectrum

A smooth log-frequency line with stable peak behavior.

Classic Studio

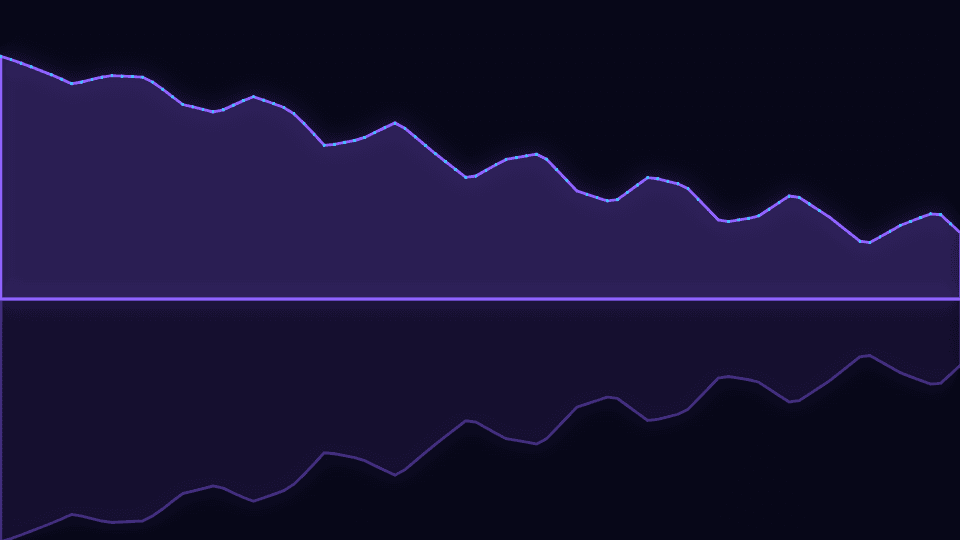

Mirrored Area

Filled frequency areas mirror across the baseline.

Classic Studio

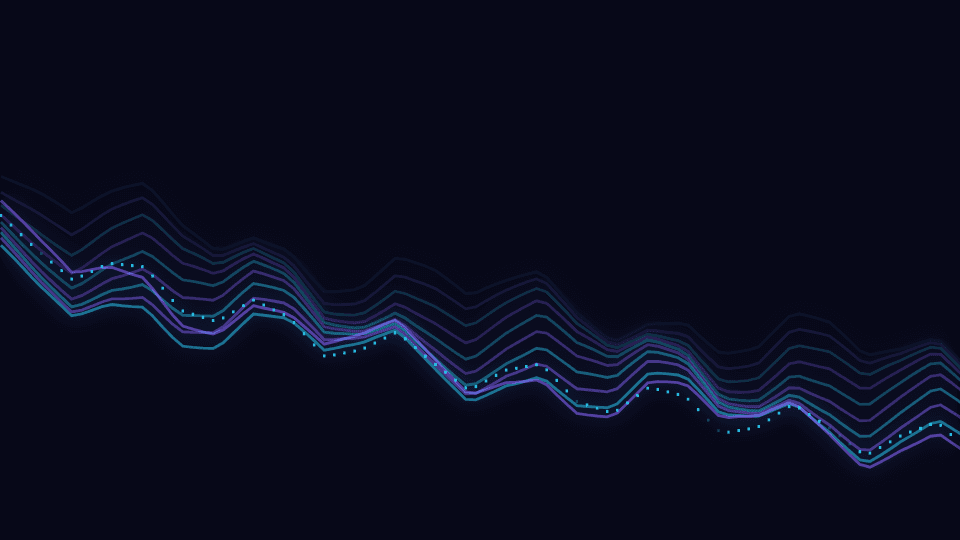

Ribbon Surface

Frequency bins project along a curved ribbon surface.

Classic Studio

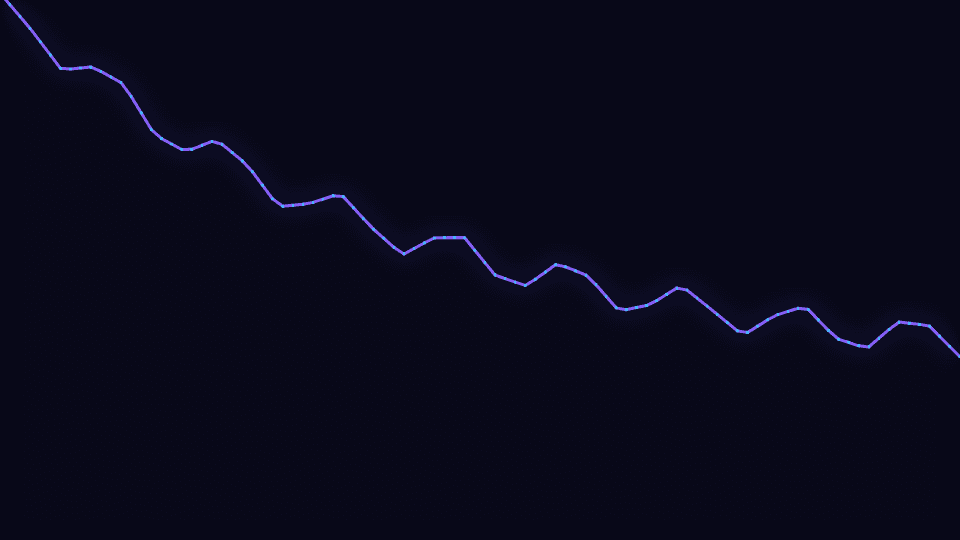

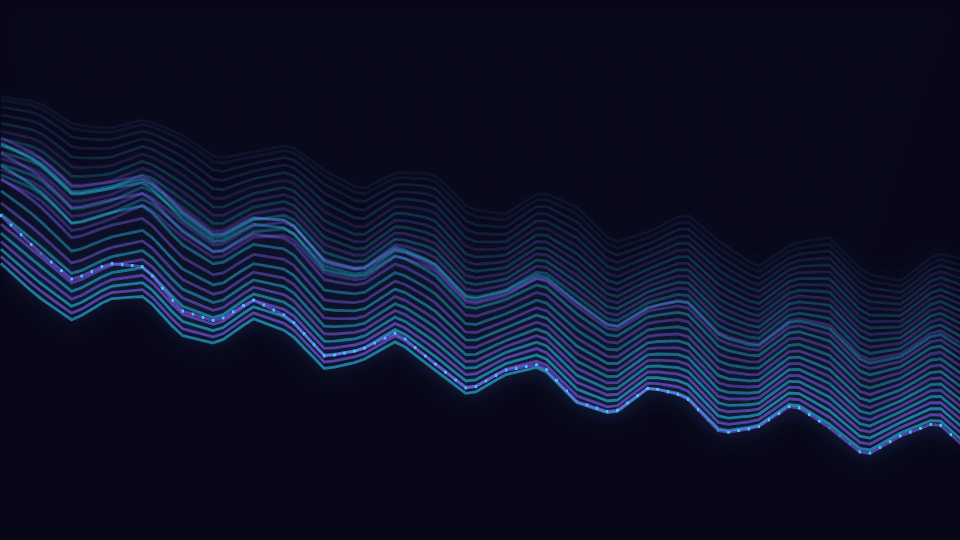

Spectrogram Waterfall

Spectral history flows through time without frame-rate coupling.

Classic Studio

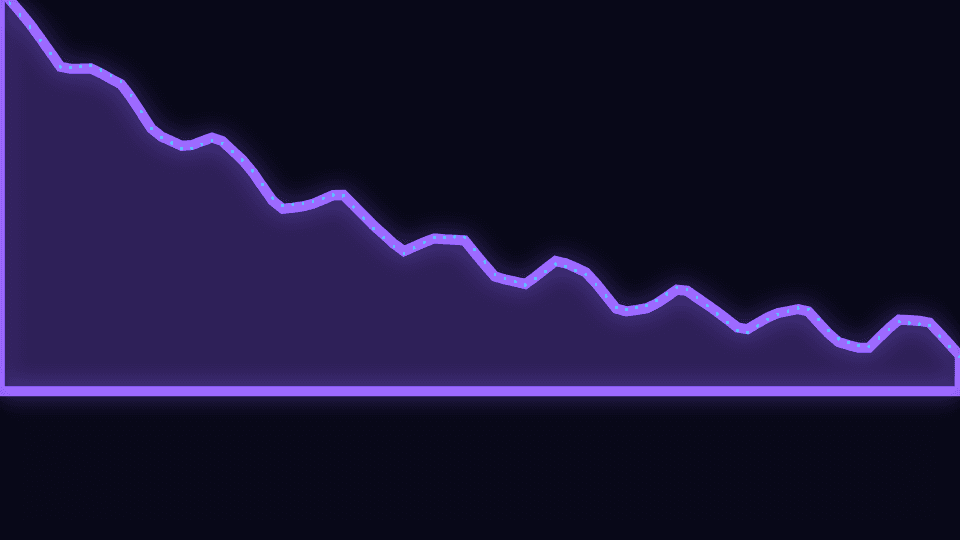

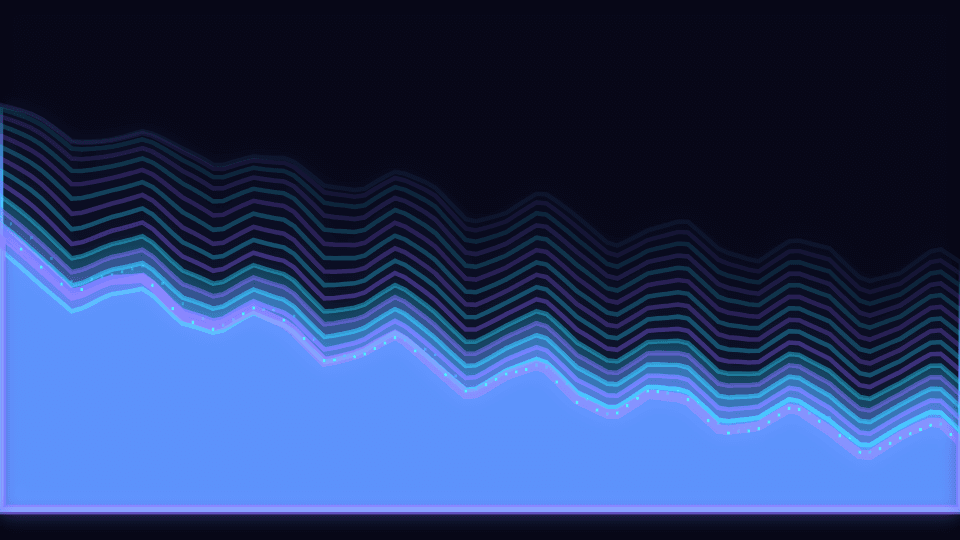

Frequency Ridge

A focused ridge emphasizes bounded band transitions.

Classic Studio

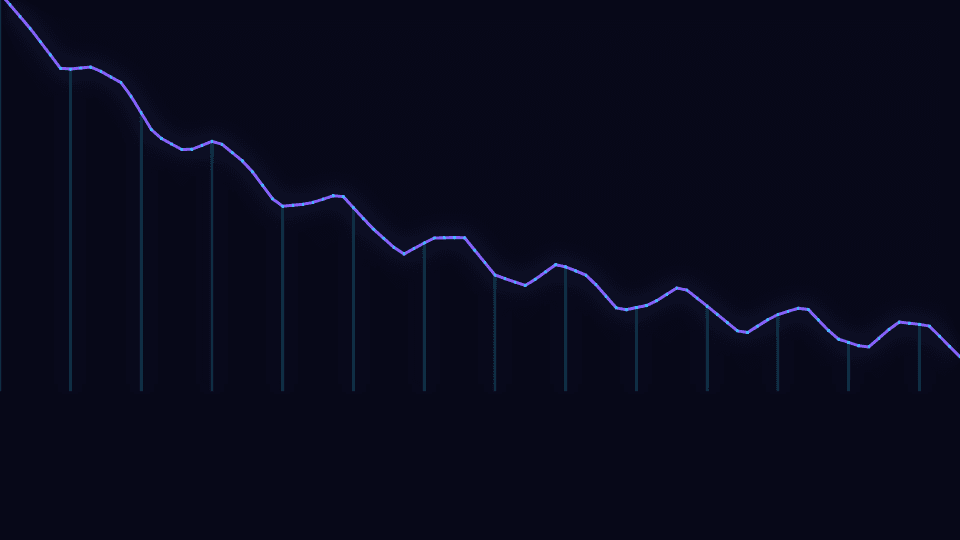

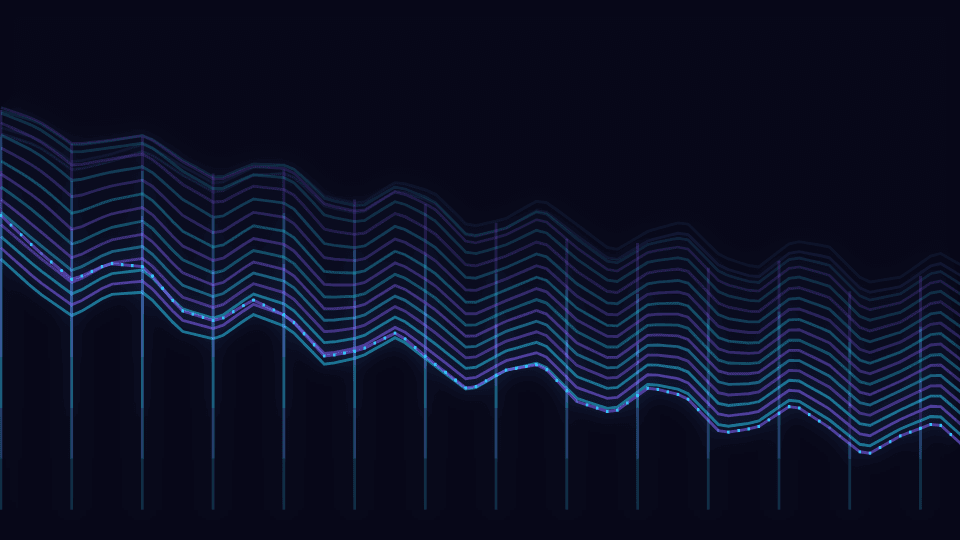

Spectral Mesh

Frequency history becomes an editable three-dimensional mesh.

Classic Studio

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#8b5cf6	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#22d3ee	Yes	No
BackgroundBackground used by the engine palette	Style	color	#050510	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
Frame marginBreathing room kept clear at the frame edges. Audio-driven geometry is soft-limited to fit inside it; geometry scale deliberately is not	Transform	range	0.035	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeFraction of the frequency range the visual spans. The top of the FFT is near-silent air on most material, so at 1 the right-hand edge of every spectrum visual barely moves	Audio	range	0.86	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
ThicknessThickness	Geometry	range	2	Yes	Yes
Noise deformationNoise deformation	Geometry	range	0	Yes	Yes
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
BinsResampled visible bin count	Spectrum	range	96	Yes	No
HistorySpectral history frames	Spectrum	range	64	Yes	No
SmoothingSmoothing	Spectrum	range	0.72	Yes	Yes
Vertical anchorWhere the spectrum baseline sits in the frame	Spectrum	select	bottom	No	No
Mirror reflectionReflect the spectrum across its baseline (floor-reflection look)	Spectrum	boolean	false	No	No
