Stage Lights

A lighting rig rather than a readout: beams, haze, pools and chases cued by the beat.

Launch modes

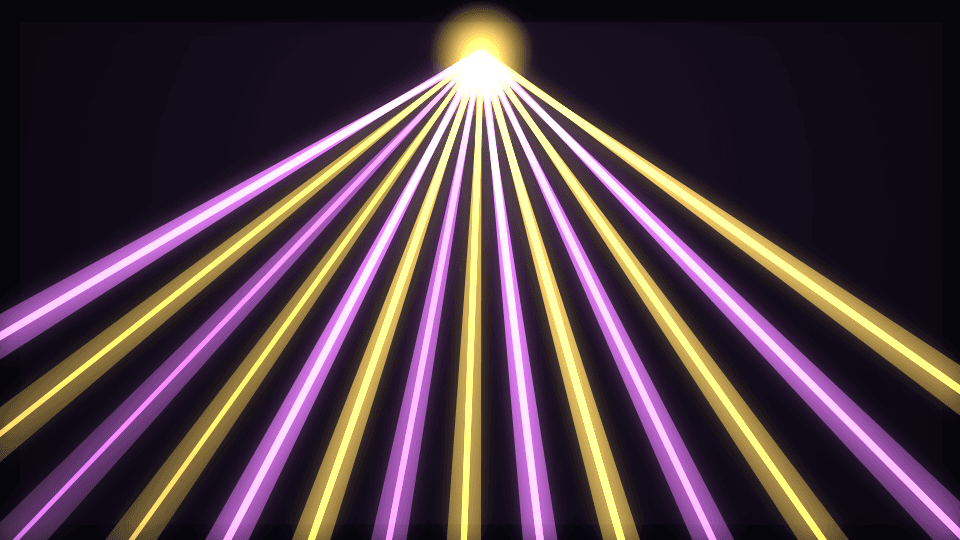

Beam Fan

One rig position throwing a fan of beams across the stage.

Classic Studio

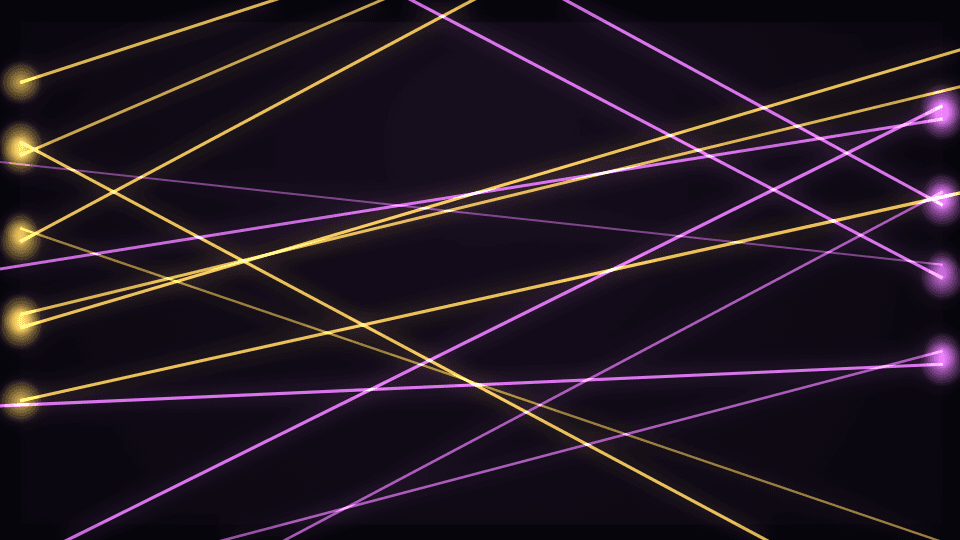

Laser Sweep

Side rigs fire thin lasers that sweep across the frame.

Classic Studio

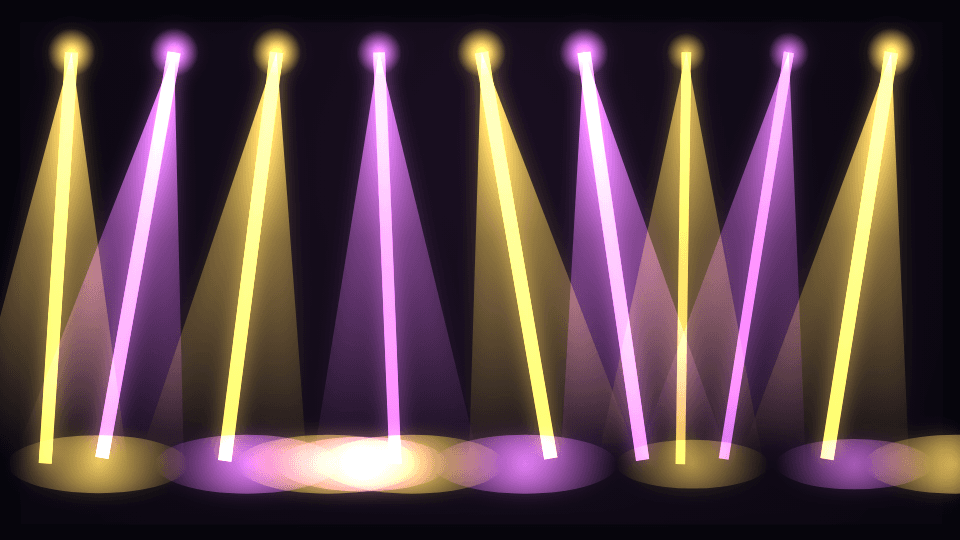

Spot Rig

Fixtures hung along a truss, each with a cone and a floor pool.

Classic Studio

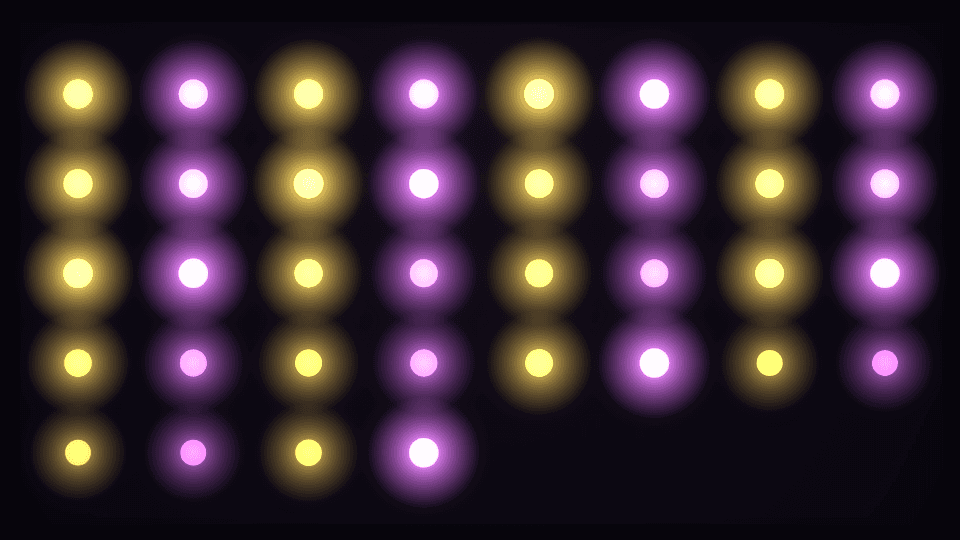

Par Wall

A back wall of par cans chasing group by group.

Classic Studio

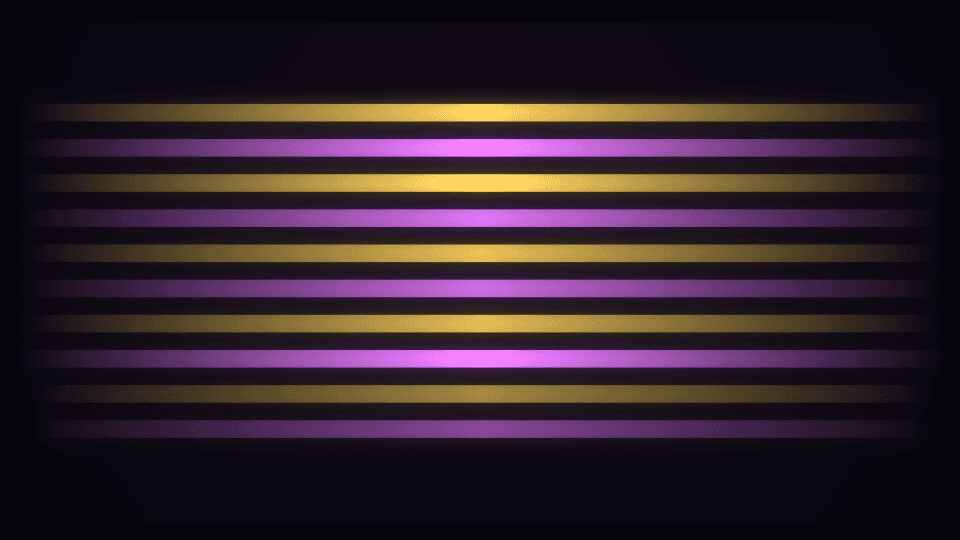

Strobe Bars

Horizontal battens pulsing in sequence — bounded bars, never a full-frame flash.

Classic Studio

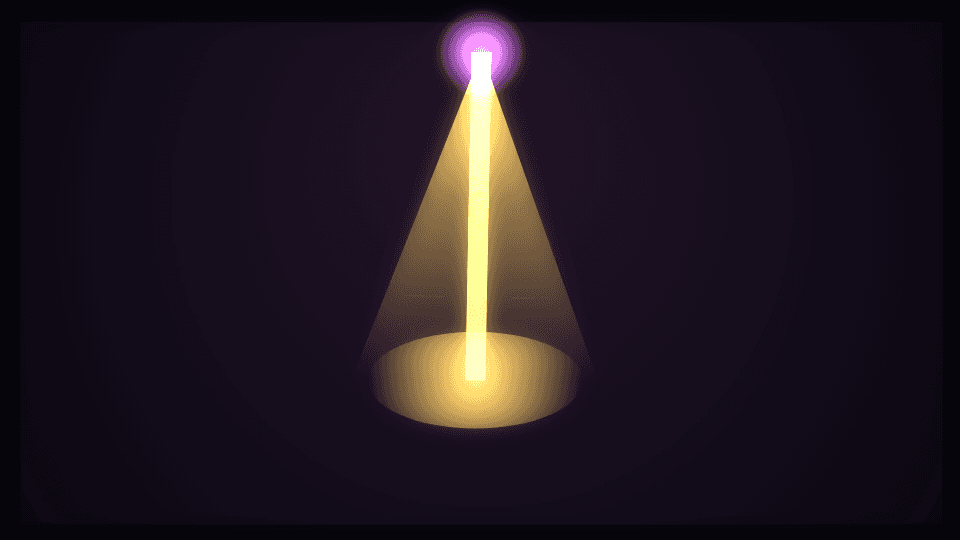

Follow Spot

A single fixture tracking a target that only moves on the beat.

Classic Studio

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#fcd34d	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#e879f9	Yes	No
BackgroundBackground used by the engine palette	Style	color	#040308	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
Frame marginBreathing room kept clear at the frame edges. Audio-driven geometry is soft-limited to fit inside it; geometry scale deliberately is not	Transform	range	0.035	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeFraction of the frequency range the visual spans. The top of the FFT is near-silent air on most material, so at 1 the right-hand edge of every spectrum visual barely moves	Audio	range	0.86	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
ThicknessThickness	Geometry	range	2	Yes	Yes
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
RotationSlow global rotation for radial/tunnel/bloom structures	Motion	range	0	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
FixturesLamps on the rig	Rig	range	12	Yes	No
Beam spreadCone angle of each beam	Rig	range	0.035	Yes	Yes
Rig arcHow wide the fan throws across the stage	Rig	range	0.62	Yes	Yes
HazeAtmospheric haze — what makes a beam visible in the air	Rig	range	0.35	Yes	Yes
Fixture decaySeconds a struck lamp takes to fall back	Rig	range	0.34	Yes	No
Chase groupsBeats it takes the chase to work around the rig	Rig	range	4	Yes	No
